$109.99
Specifications
CPU: Rockchip RK3399. big.LITTLE，Dual-Core Cortex-A72(up to 2.0GHz) + Quad-Core Cortex-A53
GPU: Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC
VPU 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
DDR3 RAM: Dual-Channel 4GB LPDDR3
Storage: 16GB eMMC 5.1 Flash
Network: Native Gigabit Ethernet
WiFi: 802.11a/b/g/n/ac, Bluetooth 4.1, Wi-Fi and Bluetooth combo module, dual antenna interface
Antenna Interface: dual antenna interface
Audio input/output Port 3.5 mm audio jack / via HDMI,DVP Camera/MIPI-CSI (two camera interfaces),HDMI Type-A / LVDS / Parallel RGB-LCD / MIPI-DSI (four video output interfaces)
Bluetooth: Bluetooth 4.1,Wi-Fi and Bluetooth combo module, dual antenna interface
Microphone: onboard Microphone
LCD Interface: one eDP 1.3（4 lane，10.8Gbps）, one 4-Lane MIPI-DSI
HDMI: HDMI 2.0a, supports 4K@60Hz，HDCP 1.4/2.2
GPIO: 1 X 3V/1.8V I2C, up to 2 x 3V UART, 1 X 3V SPI, 1 x SPDIF_TX, up to 8 x 3V GPIOs; 1 x 1.8V I2S, 3 x 1.8V GPIOs
Serial Debug Port: one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
LED: 1 x power LED and 1 x GPIO Controlled LED
RTC: 2 Pin 1.27/1.25mm RTC battery input connector
PCB Dimension: Ten Layer, 100 mm x 64 mm
Power: DC 12V/2A
Working temperature: -20℃ to 70℃
ODROID-H2
$111.00

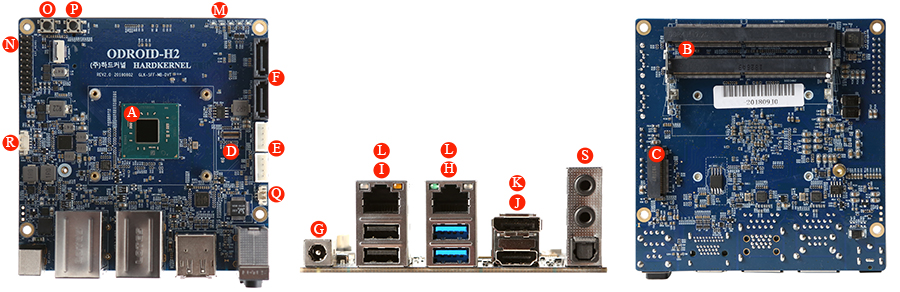

| A | CPU (Intel Celeron J4105 Processor) | K | 1 x DisplayPort 1.2 |
| B | 2 x DDR4 SO-DIMM slots (Dual channel memory support) | L | 2 x RJ45 Ethernet Ports (10/100/1000) |
| C | 1 x M.2 PCI Express Module Socket (NGFF-2280) | M | 5 x System LED Indicators |
| D | 1 x eMMC (Embedded Multimedia-Card) Socket | N | 1 x Peripheral Expansion Header (20-pin) |
| E | 2 x SATA Power Connectors | O | 1 x Power Switch |
| F | 2 x SATA3 6.0 Gb/s Data Connectors | P | 1 x Reset Switch |
| G | 1 x DC Power Jack | Q | 1 x Backup Battery Connector (2-pin) |
| H | 2 x USB 3.0 | R | 1 x Active Cooling Fan Connector (4-pin) |
| I | 2 x USB 2.0 | S | 1 x Audio out 1 x Audio in 1 x SPDIF out |
| J | 1 x HDMI 2.0 |
Specifications
Intel Quad-core processor J4105 (14nm) with 4MiB Cache, up to 2.5Ghz(Single Thread) or 2.3Ghz(Multi Thread)
Dual-channel Memory DDR4-PC19200 (2400MT/s)
Total 32GiB RAM Space with two SO-DIMM slots
4 x PCIe 2.0 for one M.2 NVMe storage
2 x Gbit Ethernet ports
2 x SATA 3.0
SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
Intel UHD Graphics 600 (Gen9.5 LP GT1) up to 700Mhz
HDMI 2.0 and DP 1.2 multiple 4K/60Hz video outputs
MinnowBoard Turbot Dual Ethernet Family
$175.00
Specifications
Processor name/number Dual-core Intel® Atom™ E3826 or Quad-Core Intel® Atom™ E3845
Number of cores 2/2 or 4/4
On-chip cache 1 MB or 2 MB
Max operating frequency (GHz) 1.46 or 1.91
Graphics Co-processor Gen 7 (4 Execution Units)
Max display resolution 1920×1280
SDRAM Size 2GB
SDRAM Type/speed DDR3L 1067 MT/s orDDR3L 1333 MT/s
LattePanda Alpha 864
$358.00
Specifications
CPU：Intel 7th Gen Core m3-7y30
Core：1.6-2.6GHz Dual-Core，Four-Thread
Benchmark (PassMark): Up to 3500, double computing power compared with same price range products in the market
Graphics：Intel HD Graphics 615, 300-900MHz
RAM：8G LPDDR3 1866MHz Dual-Channel
Memory：64GB eMMC V5.0l
External Memory：
1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD
1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM
Connectivity：
WIFI 802.11 AC, 2.4G & 5G
Dual Band Bluetooth 4.2
Gigabyte Ethernet
USB Ports：
3x USB 3.0 Type A
1x USB Type C, supports PD, DP, USB 3.0
Display：
HDMI Output
Type-C DP Support
Extendable eDP touch displays
Co-processor：Arduino Leonardo
GPIO & Other Features：2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power Management，Extendable power button，everything you need
OS Support：
Windows 10 Pro
Linux Ubuntu
Dimension: 115mm * 78mm * 14 mm
